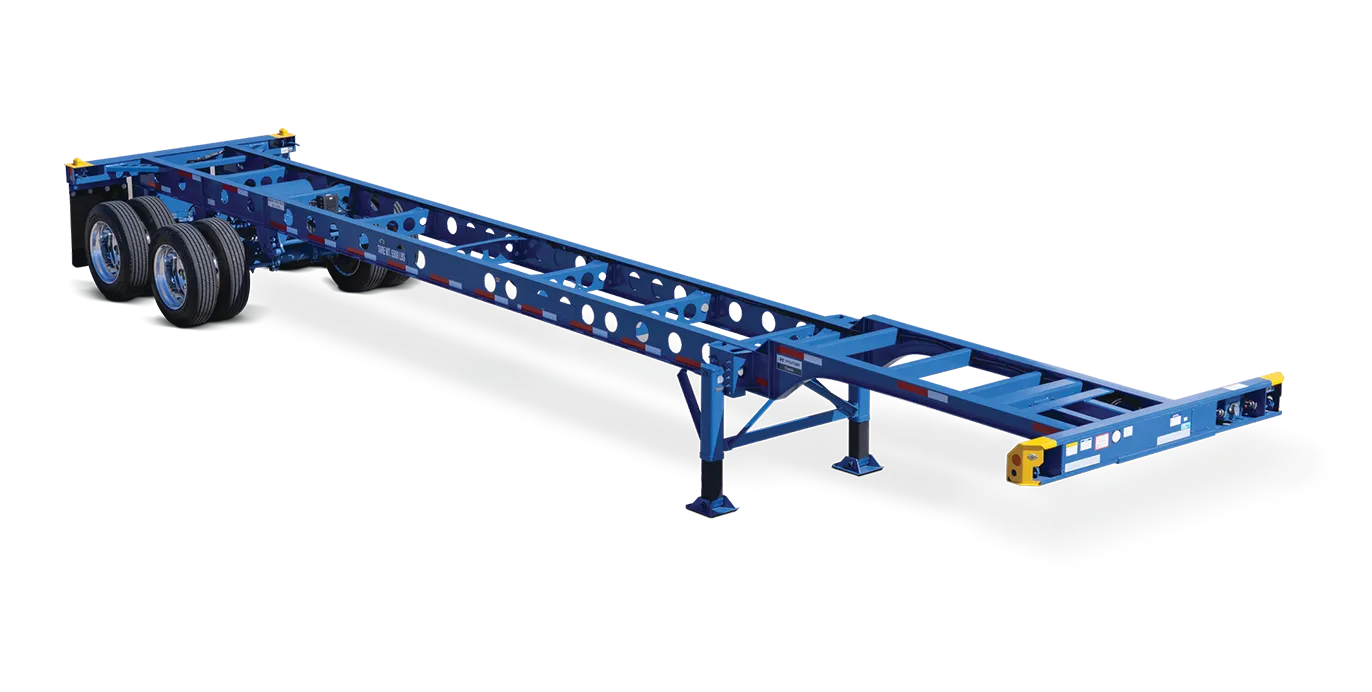

This model uses a lightweight, durable construction. The 40’ Lightweight Gooseneck features increased freight capacity by utilizing lightweight components such as aluminum wheels and a ported main beam.
40’ 8-1/2”
96”
67,200 lbs
72,750 lbs
5,550 lbs

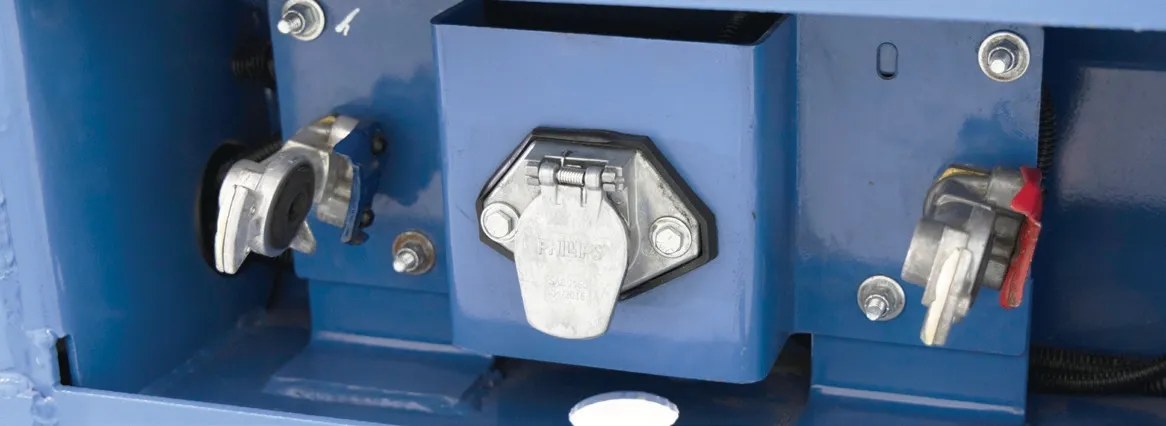

Sealed wiring harness with integral ground
A.A.R. Certified
Fabricated I-beam gooseneck with GR80 steel
SAF Holland overslung suspension with two-leaf springs

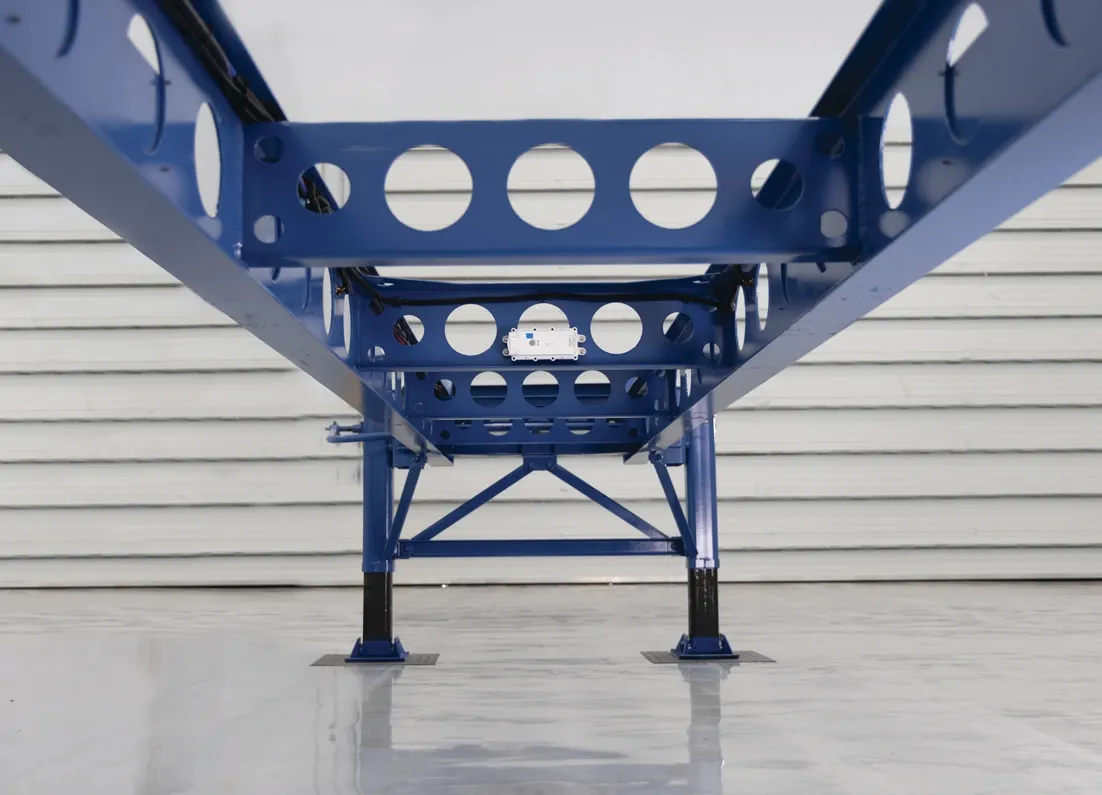

Ultrlight series landing gear, 50,000 lbs lift capacity with heavy-duty sand shoe
Rear impact guard compliant with FMVSS

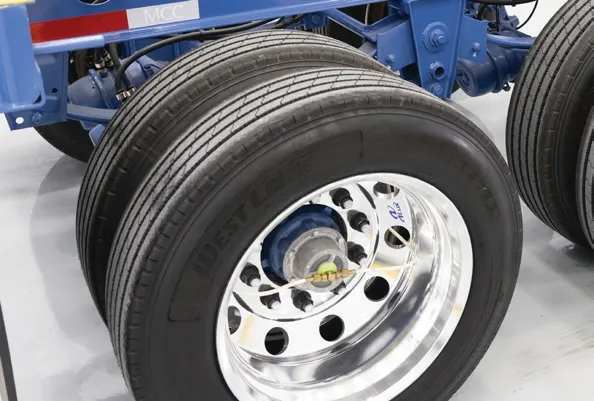

Heavy-duty wheels, aluminum disc drums, and tires (255/70R22.5 16 PLY H)
2S-1M ABS brake system (FMVSS No. 121 compliant)
12V sealed wiring system with LED lamps
Finished with urethane topcoat for durability
Main Beam: Hi-tensile steel, 12” x 16 lbs/ft H-beam
Kingpin Setting: 30”
Crossmembers: Fabricated channel with integrated gussets
Upper Coupler: Hi-tensile steel, A.A.R. Certified cruciform-style kingpin
Front Bolster: 8” x 10” x 3/16” U-channel GR80 with two locking pins

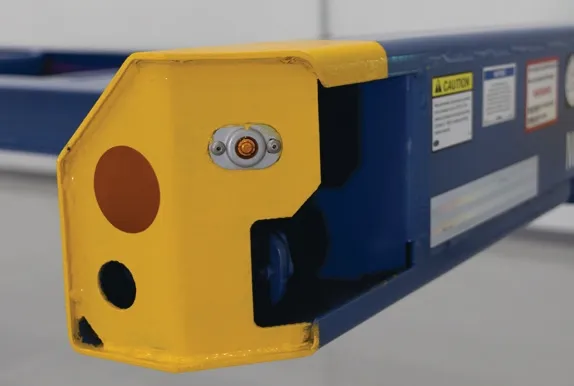

Rear Bolster: 8” x 7-7/8” U-channel GR80 with non-retractable twist locks
Axles: 5” round, 22,500 lbs rating, 71-1/2” track
Brakes: Non-asbestos lining, 16-1/2” x 7”
Meets Federal Motor Vehicle Safety Standards
Conspicuity markings installed per Federal Safety Standards
Customer markings installed
