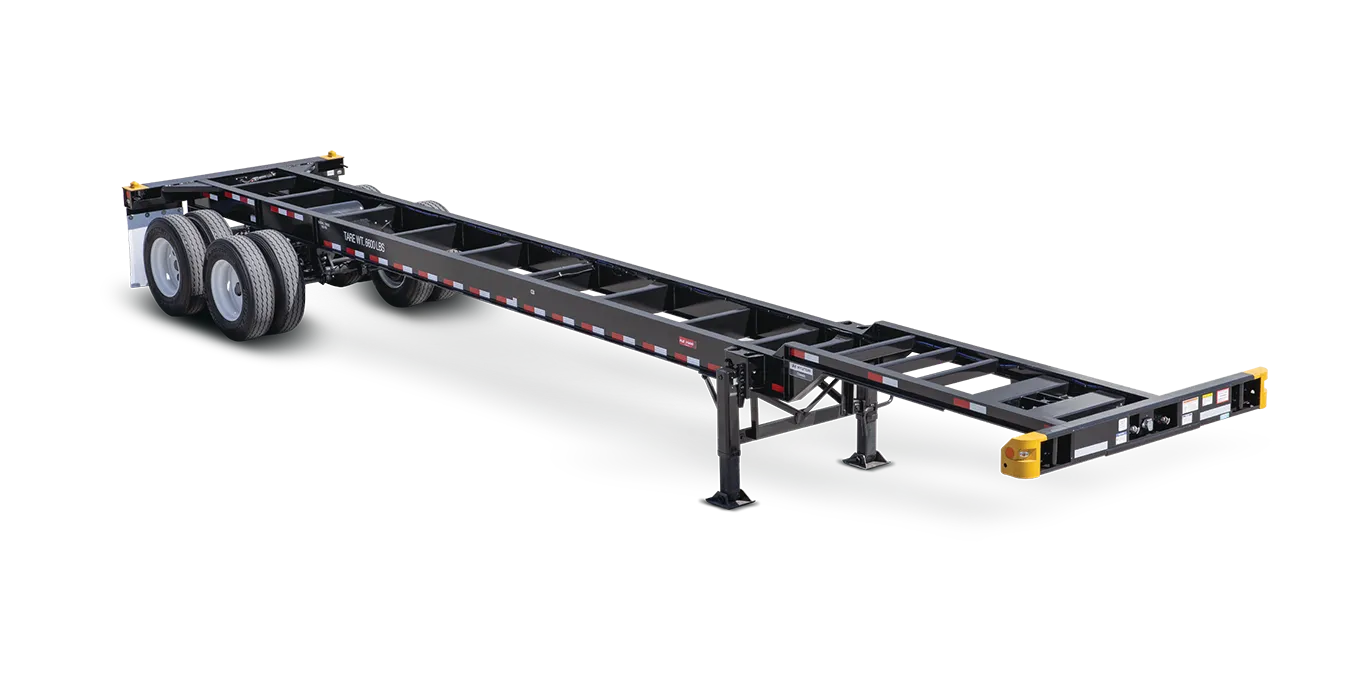

The 40’ Gooseneck chassis is strong and effective. Built for hauling a single 40’ container, this chassis features corrosion resistant construction for greater longevity.
40’ 8-1/2”
96”
67,200 lbs
73,800 lbs
6,600 lbs

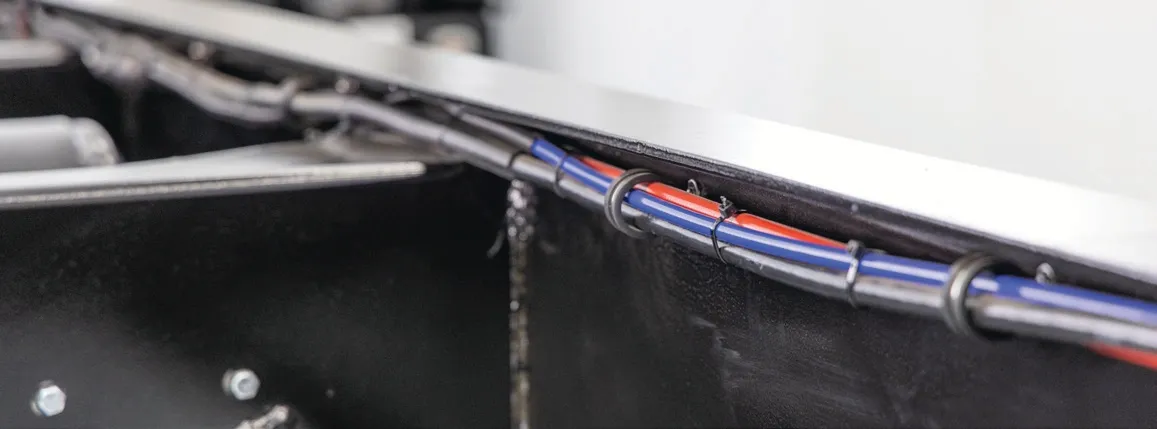

Sealed wiring harness with integral ground
A.A.R. Certified
Fabricated I-beam gooseneck with GR50 steel
Hutchens overslung suspension with three-leaf springs
55,000 lbs landing gear capacity with heavy-duty sand shoe
Rear impact guard conforming to FMVSS standards
Heavy-duty wheels, drums, and tires (11R22.5 14 PLY G)
2S-1M ABS brake system (FMVSS No. 121 compliant)

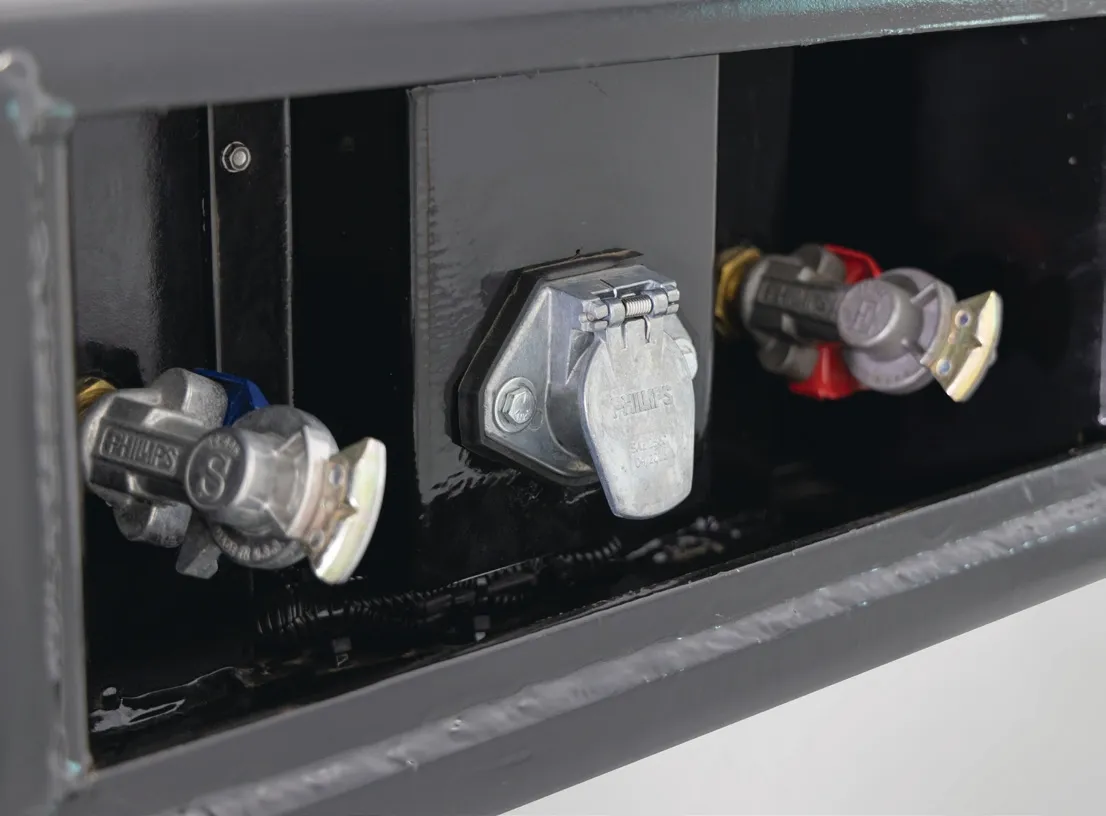

12V sealed wiring system with LED lamps
Finished with urethane topcoat for maximum protection
Main Beam: Hi-tensile steel, 12” x 19 lbs/ft H-beam
Kingpin Setting: 30”

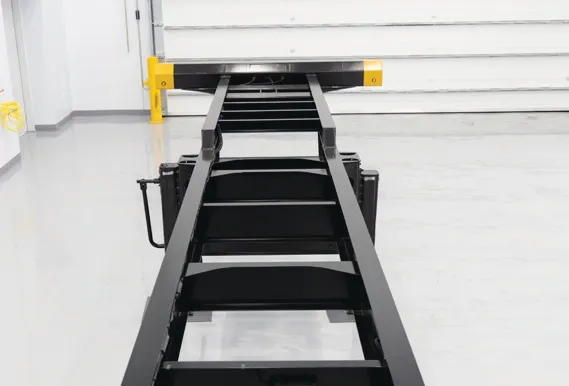

Crossmembers: Fabricated channel with gussets every other member

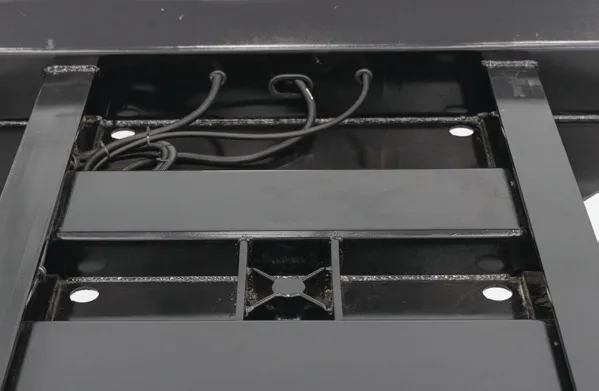

Upper Coupler: Hi-tensile steel with cruciform-style kingpin (A.A.R. Certified)
Front Bolster: 8” x 10” U-channel with two locking pins
Rear Bolster: 8” x 7-7/8” U-channel with non-retractable twist locks
Axles: 5” round, 22,500 lbs rating, 71-1/2” track
Brakes: Non-asbestos lining, 16-1/2” x 7”
Meets all Federal Motor Vehicle Safety Standards in effect at production
Conspicuity markings per Federal Safety Standards
Customer markings installed
