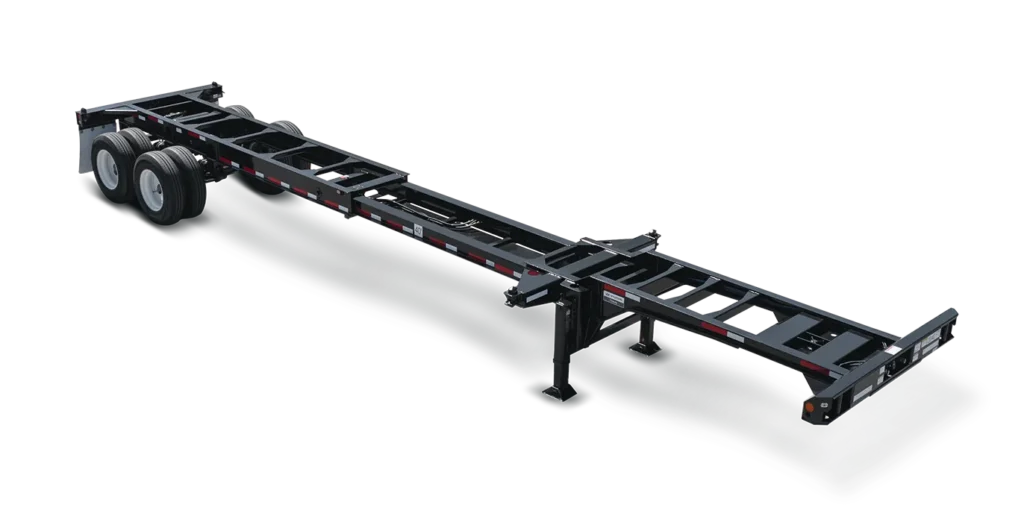

Strong and efficient, this model extends to carry a 20’ or 40’ container. The locking pin mechanism and corrosion protection ensure reliability and strength that lasts.
31’ 1-1/8”
40’ 8-3/8”
52,910 lbs
67,200 lbs
96”
60,510 lbs
74,800 lbs
7,600 lbs

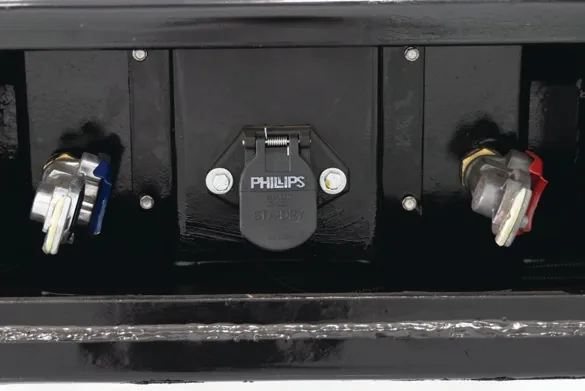

Sealed wiring harness with integral ground
A.A.R. Certified
Fabricated I-beam gooseneck with GR50 steel
Hutchens overslung suspension with three-leaf springs

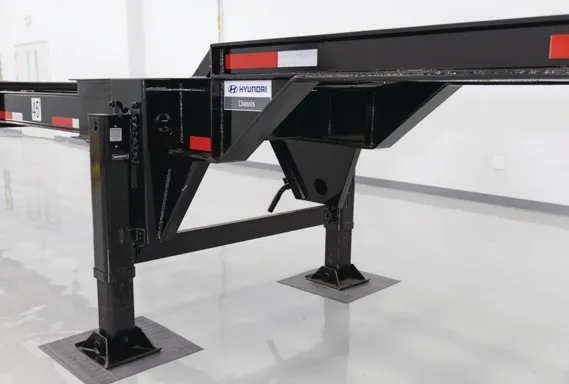

Landing gear, 55,000 lbs lift capacity with heavy-duty low profile sand shoe

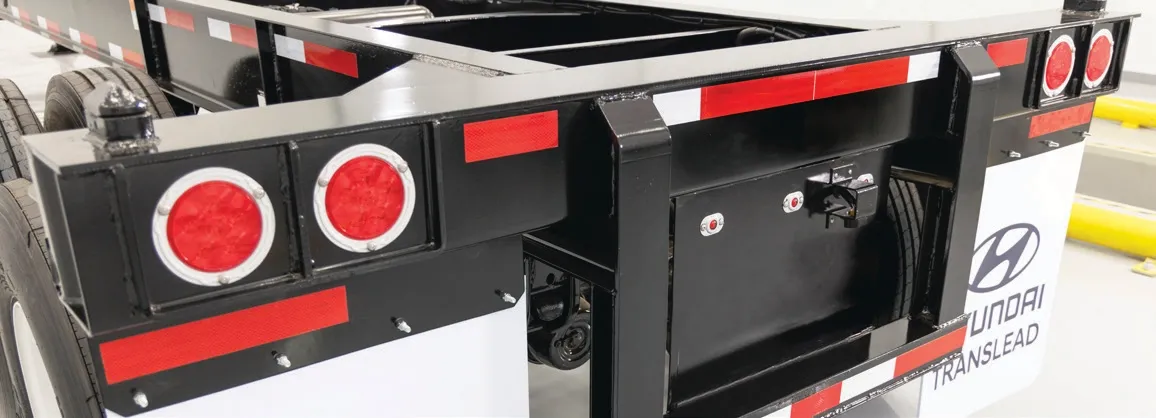

Rear impact guard compliant with FMVSS
Heavy-duty wheels, drums, and tires (11R22.5 14 PLY G)
2S-1M ABS brake system (FMVSS No. 121 compliant)
12V sealed wiring system with LED lamps
Finished with urethane topcoat for durability
Main Beam: Hi-tensile steel, 12” x 19 lbs/ft H-beam
Extension Beam: Hi-tensile steel, 8” x 18 lbs/ft H-beam

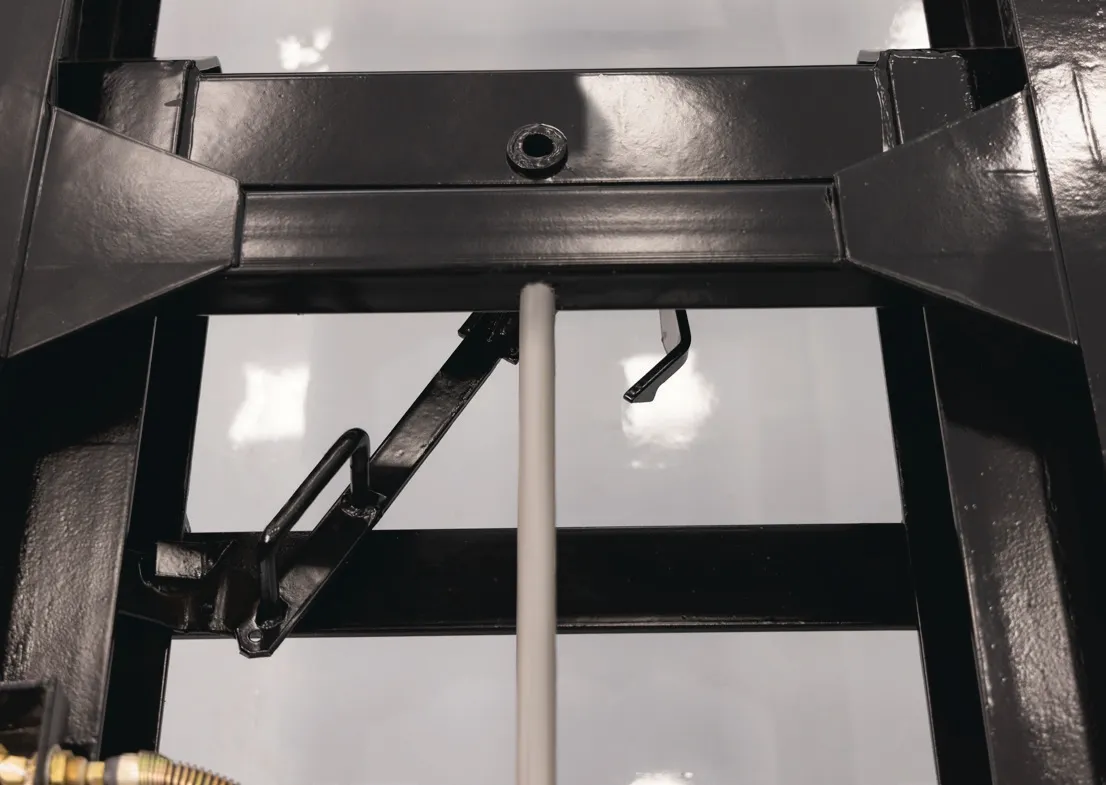

Lock Mechanism: Spring-loaded pins, protected inside extension frame
Kingpin Setting: 24”
Crossmembers: Fabricated channel with gussets integrated every other crossmember
Upper Coupler: Hi-tensile steel, A.A.R. Certified cruciform-style kingpin; interior walls coated for corrosion protection
Front Bolster: 8” x 10” U-channel GR80 with two locking pins
Intermediate Bolster: 8” x 6” A500 GRC rectangular tube with two cantilever retractable twist locks
Rear Bolster: 8” x 7-7/8” U-channel GR80 with two non-retractable twist locks
Axles: 5” round type, 22,500 lbs rating, 71-1/2” track
Brakes: Non-asbestos lining, 16-1/2” x 7”
Meets Federal Motor Vehicle Safety Standards
Conspicuity markings installed per Federal Safety Standards
Customer markings installed
